FXM 38-17 NX One-Way Freewheel Clutch Backstop Bearings FXM38-17

Brand Name : SFT

Model Number : FXM 38-17NX

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Bore Size : 54.76mm

Thickness : 35mm

Outer dia. : 71.42mm

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining

WEIGHT : 1.8kg

Seals Type : Non-sealed

Contact Now

FXM 38-17NX One-Way Freewheel Clutch Backstop Bearings

Product Description

Features of backstop bearings

Structure: FXM is a integrated sprag freewheels. It is equipped with sprag lift off X. The lift off X is used for backstop and overrunning clutches.

Lubrication: no special lubrication is required.

Catalogue of backstop bearings for your choice

FXM 38-17 NX One-Way Freewheel Clutch Backstop Bearings FXM38-17

FXM TORQUE
Freewheel Size		Type	Theoretical nominal torque		0,1	A		0,2	A	Nominal torque at existing run out (T.I.R.)		0,4	A		0,5	A	Sprag lift-off at inner ring speed min-1	Max. speed	Outer ring drives min-1
			Nm							Nm								overruns min-1
FXM	31 - 17	NX	110	110			105			100							890	5 000	356
FXM	38 - 17	NX	180	170			160			150							860	5 000	344
FXM	46 - 25	NX	460	450			440			430							820	5 000	328
FXM	51 - 25	NX	560	550			540			530							750	5 000	300
FXM	56 - 25	NX	660	650			640			630							730	5 000	292
FXM	61 - 19	NX	520	500			480			460							750	5 000	300
FXM	66 - 25	NX	950	930			910			890							700	5 000	280
FXM	76 - 25	NX	1 200	1 170			1 140			1 110							670	5 000	268
FXM	86 - 25	NX	1 600	1 550			1 500			1 450							630	5 000	252
FXM	101 - 25	NX	2 100	2 050			2 000			1 950							610	5 000	244
FXM	85 - 40	MX	2 500	2 500			2 450			2 450	2 450			2 450			430	6 000	172
FXM	100 - 40	MX	3 700	3 600			3 600			3 500	3 500			3 500			400	4 500	160
FXM	120 - 50	MX	7 700	7 600			7 500			7 300	7 300			7 300			320	4 000	128
FXM	140 - 50	MX	10 100	10 000			9 800			9 600	9 500			9 500			320	3 000	128
FXM	170 - 63	MX	20 500	20 500			20 000			19 500	19 000			19 000			250	2 700	100
FXM	200 - 63	MX	31 000	30 500			30 000			26 500	23 000			20 500			240	2 100	96

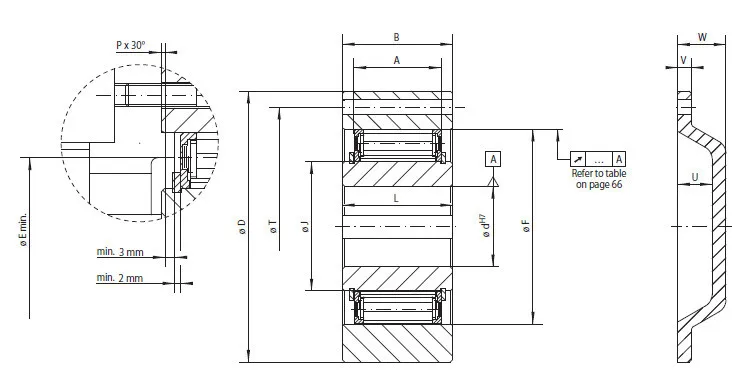

FXM DATA SHEET
	Bore d							A	B	D	E	F	G	J	L	P	T	U	V	W	Z**	Weight
Type	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	Z**	kg
FXM 31 -17	20*						20*	17	25	85	41	55	M6	31	24	1,0	70	15	6	21	6	0,8
FXM 38 -17	25*						25*	17	25	90	48	62	M6	38	24	1,0	75	15	6	21	6	0,9
FXM 46 -25	25						30	25	35	95	56	70	M6	46	35	1,0	82	15	6	21	6	1,3
FXM 51 -25	25	30	35				36	25	35	105	62	75	M6	51	35	1,0	90	15	6	21	6	1,7
FXM 56 -25	35						40	25	35	110	66	80	M6	56	35	1,0	96	15	6	21	8	1,8
FXM 61 -19	30	35	40				45*	19	27	120	74	85	M8	61	25	1,0	105	15	6	21	6	1,8
FXM 66 -25	35	40	45				48*	25	35	132	82	90	M8	66	35	1,0	115	15	8	23	8	2,8
FXM 76 -25	45	55					60*	25	35	140	92	100	M8	76	35	1,0	125	15	8	23	8	3,1
FXM 86 -25	40	45	50	60	65		70*	25	40	150	102	110	M8	86	40	1,0	132	15	8	23	8	4,2
FXM 101 -25	55	70					80*	25	50	175	117	125	M10	101	50	1,0	155	20	8	28	8	6,9
FXM 85 -40	45	50	60	65			65	40	50	175	102	125	M10	85	60	1,0	155	20	8	28	8	7,4
FXM 100 -40	45	50	55	60	70	75	80*	40	50	190	130	140	M10	100	60	1,5	165	25	10	35	12	8,8
FXM 120 -50	60	65	70	75	80	95	95	50	60	210	150	160	M10	120	70	1,5	185	25	10	35	12	12,7
FXM 140 -50	65	90	100	110			110	50	70	245	170	180	M12	140	70	2,0	218	25	12	35	12	19,8
FXM 170 -63	70	85	90	100	120		130	63	80	290	200	210	M16	170	80	2,0	258	28	12	38	12	33,0
FXM 200 -63	130						155	63	80	310	230	240	M16	200	80	2,0	278	32	12	42	12	32,0
FXM 240 - 63							185	63	80	400	280	310	M20	240	90	2,0	360	48	15	60	12	60,0
FXM 240 - 96							185	96	125	420	280	310	M24	240	120	2,0	370	48	18	60	16	95,0
FXM 260 - 63							205	63	80	430	300	330	M20	260	105	2,0	380	48	18	60	16	75,0
FXM 290 - 70							230	70	80	460	330	360	M20	290	105	2,0	410	48	18	60	16	90,0
FXM 290 - 96							230	96	110	460	330	360	M20	290	120	2,0	410	48	18	60	16	91,0
FXM 310 - 70							240	70	125	497	360	380	M20	310	110	3,0	450	48	18	60	24	135,0
FXM 310 - 96							240	96	125	497	360	380	M20	310	120	3,0	450	48	18	60	24	145,0
FXM 320 - 70							250	70	80	490	360	390	M24	320	105	3,0	440	55	20	68	16	105,0
FXM 360 - 100							280	100	120	540	400	430	M24	360	125	3,0	500	55	20	68	24	170,0
FXM 410 - 100							320	100	120	630	460	480	M24	410	125	3,0	560	55	20	68	24	245,0
FXM 2410 - 100							320	200	220	630	460	480	M30	410	220	3,0	560	55	20	68	24	440,0
