Product Description

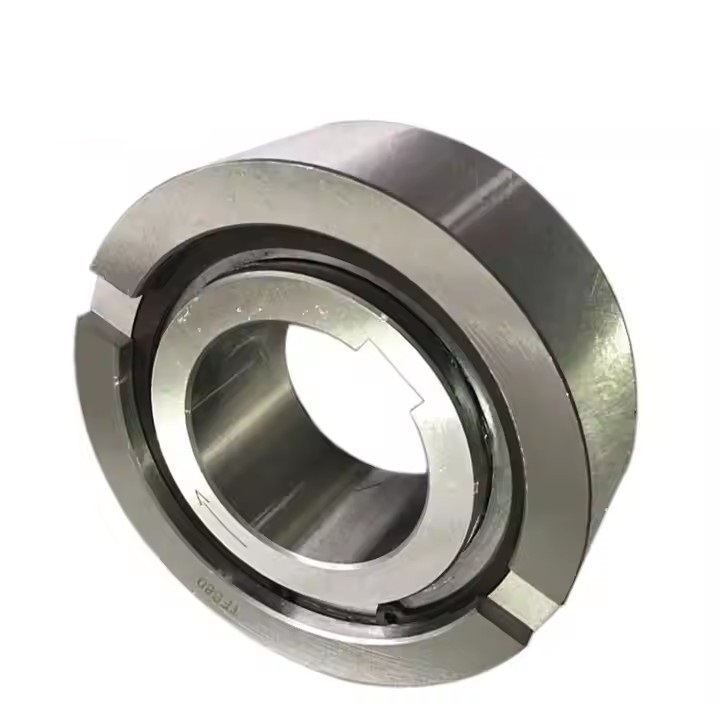

Features of TFS one way bearings :
The outer race of the TFS Series Cam Clutch is designed for press fit installation to the housing. Correct interference dimensions of the outer race must be maintained to obtain maximum clutch performance.
Internal Housing Diameter Tolerance: H7
Shaft Tolerance: h7
| SPECIFICATIONS | |
| Product name | one way bearings |
| Model | TFS40 |
| Material | Chrome steel GCr15 |
| Inner diameter | 40mm |
| Outer diameter | 90mm |
| Torque capacity | 607Nm |
| Weight | 1050g |
| Thickness | 33mm |
| Application | Textile machine, fans, ventilators, printing machine |
| Package | Carton Box / Wooden box |
| Payment terms | TT. L/C, D/A,D/P,Western Union,Paypal |
| Delivery time | 2-4 days for the sample, 7 days for big order |

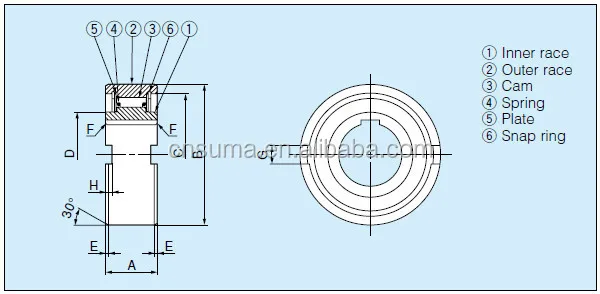

Catalogue of tfs one way cam clutch for your choice
| Model | Torque | Max.Overrunning | Drag | Bore Size | Keyway | A | B | C | D | E | F | G | H | Weight |
| Capacity | Inner Race | Outer Race | Torque |
| (N·m) | (r/min) | (r/min) | (N·m) | (H7) | | | | | | | | | (g) |
| TFS12 | 18 | 4500 | 2300 | 0.04 | 12 | 4x1.8 | 13 | 35 | 30 | 18 | 0.6 | 0.3 | 4 | 1.4 | 68 |
| TFS15 | 28 | 3500 | 1800 | 0.06 | 15 | 5x1.2 | 18 | 42 | 36 | 22 | 0.8 | 0.3 | 5 | 1.8 | 120 |
| TFS17 | 50 | 3200 | 1600 | 0.11 | 17 | 5x1.2 | 19 | 47 | 38 | 22 | 1.2 | 0.8 | 5 | 2.3 | 150 |
| TFS20 | 84 | 2500 | 1300 | 0.18 | 20 | 6x1.6 | 21 | 52 | 45 | 27 | 1.2 | 0.8 | 6 | 2.3 | 220 |
| TFS25 | 128 | 2000 | 1000 | 0.19 | 25 | 8x2.0 | 24 | 62 | 52 | 35 | 1.2 | 0.8 | 8 | 2.8 | 360 |
| TFS30 | 200 | 1600 | 800 | 0.21 | 30 | 8x2.0 | 27 | 72 | 62 | 40 | 1.8 | 1 | 10 | 2.5 | 530 |
| TFS35 | 475 | 1400 | 700 | 0.42 | 35 | 10x2.4 | 31 | 80 | 70 | 48 | 1.8 | 1 | 12 | 3.5 | 790 |
| TFS40 | 607 | 1300 | 650 | 0.46 | 40 | 12x2.2 | 33 | 90 | 78 | 54.5 | 1.8 | 1 | 12 | 4.1 | 1050 |
| TFS45 | 756 | 1100 | 550 | 0.56 | 45 | 14x2.1 | 36 | 100 | 85.3 | 59 | 1.8 | 1 | 14 | 4.6 | 1370 |
| TFS50 | 1124 | 1000 | 500 | 0.6 | 50 | 14x2.1 | 40 | 110 | 92 | 65 | 1.8 | 1 | 14 | 5.6 | 1900 |
| TFS60 | 1975 | 840 | 420 | 0.87 | 60 | 18x2.3 | 46 | 130 | 110 | 84 | 2.6 | 1.5 | 18 | 5.5 | 3110 |
| TFS70 | 2514 | 750 | 380 | 0.91 | 70 | 20x2.7 | 51 | 150 | 125 | 91 | 2.6 | 1.5 | 20 | 6.9 | 4390 |
| TFS80 | 3924 | 670 | 340 | 1.22 | 80 | 22x3.1 | 58 | 170 | 140 | 100 | 2.6 | 1.5 | 20 | 7.5 | 6440 |
